Leading Manufacturer for Transdermal Patch Making Machine - OZM340-10M Transdermal Patch Making Machine – Aligned Detail:

Sample diagram

odf Sample diagram
odf Sample diagram1
odf Sample diagram3

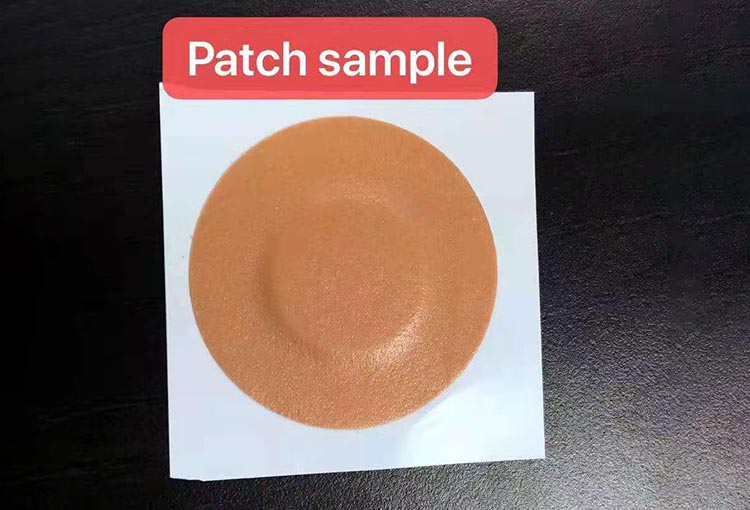

OZM340-10M Transdermal Patch Making Machine0011

Product performance characteristics

1. It is suitable for the composite production of paper, film, and metal film coatings.The power system of the whole machine adopts a frequency converter stepless speed regulation system. Unwinding adopts magnetic powder brake tension control
2. Adopt main body plus accessory module structure, each module can be disassembled and installed separately. Installation using cylindrical pin positioning, screw fixation, easy assembly.
3. The equipment has automatic working length recording and speed display.
4. Independent partition of drying oven, with independent automatic control of temperature, humidity, concentration and other functions, to ensure efficient and high quality production.
5. The lower transmission area and upper operation area of the equipment are completely sealed and isolated by stainless steel plates, which avoids cross-contamination between the two sections when the equipment is working, making it easier to clean.
6. All the parts in contact with the material, including the pressing roller and the drying tunnel, are made of stainless steel and non-toxic materials, which meet the requirements and specifications of “GMP”. All electrical components, wiring and operation schemes comply with “UL” safety standards.
7. Equipment emergency stop safety device, improve the safety of the operator in debugging and mold change.
8. It has a one-stop assembly line for unwinding, coating, drying, laminating and rewinding, with smooth technology and intuitive production process.
9. The switchboard adopts split structure, and the drying area can be customized and lengthened to make the operation more smooth.

OZM340-10M Transdermal Patch Making Machine006
OZM340-10M Transdermal Patch Making Machine007

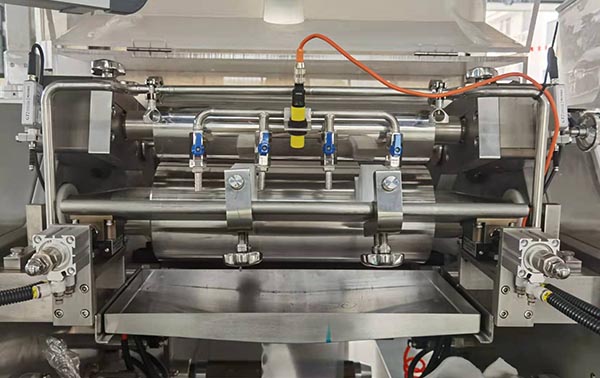

OZM340-10M Transdermal Patch Making Machine008
OZM340-10M Transdermal Patch Making Machine009

Main Technical Parameters

Production width 280mm
Roll surface width 350mm
Speed 1m-2.5m/min
Depends on the actual material and status
Unwinding diameter ≤φ350mm
Rewinding diameter ≤φ350mm
Heating and drying method Built-in hot air drying, centrifugal fan hot air exhaust
Temperature control RT-99℃    ±2℃
Edge thickness ±1.0mm
Power 60KW
External dimensions 9000*1620*2050mm
Voltage 380V 50HZ
